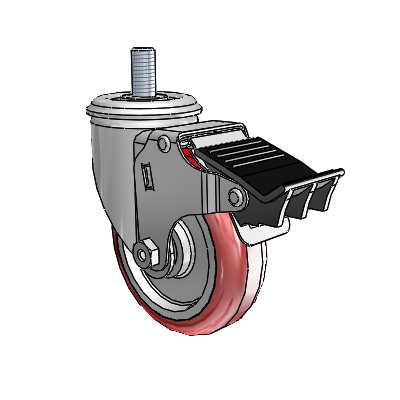

2 Series Threaded Stem Zinc Swivel Caster with 4 x 1.25 Maroon on Grey Polyurethane HI-TECH Wheel and Total Lock Brake
2 Series Threaded Stem Zinc Swivel Caster with 4 x 1.25 Maroon on Grey Polyurethane HI-TECH Wheel and Total Lock Brake

Colson

2 Series Threaded Stem Zinc Swivel Caster with 4 x 1.25 Maroon on Grey Polyurethane HI-TECH Wheel and Total Lock Brake

View CAD
SKU: 2.04254.95 MTG11 BRK5
Hurry up! Current stock:
Technical Data
Series 2 Series Casters
Caster Type Swivel
Brake Type Total Lock (BRK5)
Finish Zinc
Wheel Diameter 4
Tread Width 1.25
Wheel Type Polyurethane HI-TECH
Tread Detail Polyurethane
Core Detail Polyolefin
Wheel Color Maroon on Grey
Bearing Type Ball
Fastening Type Threaded Stem
Fastening Size 1/2"-13UNC x 1" (MTG11)
Capacity 275
Mount Height 5
Swivel Radius 4.75
Wheel Face Round Tread
Temperature Range -45F to +180F
Hardness 45(+/-5) Shore D
Wheel Material Moldon Polyurethane
Wheel Category Polyurethane
Has Brake Yes
SKU 2.04254.95 MTG11 BRK5
Features
Industries
Applications
Downloads

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
